Tripath TA2022



Tripath TA2022 Amplifier

Tripath Amplifier

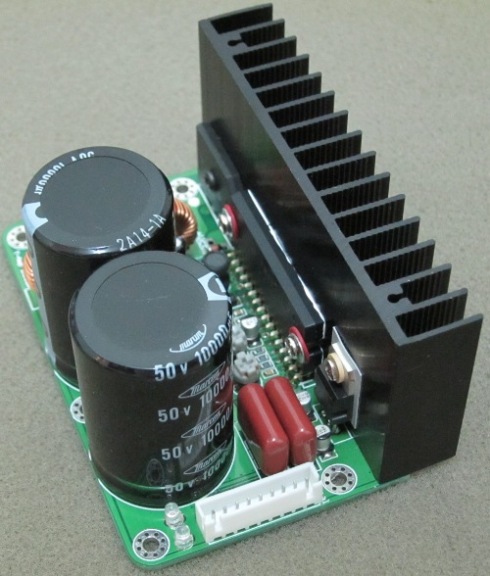

Does the picture above look like a face?

  • Heatsink - eye brow
  • Electrolytic capacitor - eyes
  • Speaker protection module - nose / mouth
  • Cables - cheeks

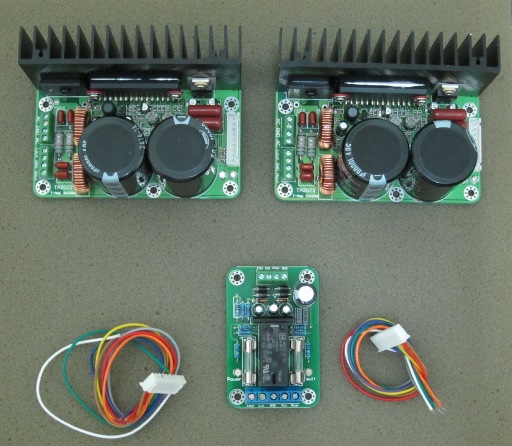

This is my recent module purchase for my upcoming project - dual mono TA2022 90W power amplifier!

I've built Tripath amplifiers based on TA2022, TA2020, and TK2020 and I really like their sonic signature. Therefore, I'm building another ULTIMATE version to test drive the Zu Audio Soul Superfly high efficiency speaker.

Zu Audio Soul Superfly

Some projects in the past are as below. It's a pity that I didn't take pictures of my older setups. :( Anyhow, that's life!

Tripath TK2050 Amplifier

5687 tube pre-amplifier TA2022 power amplifier

Tripath TA2022 Image 0

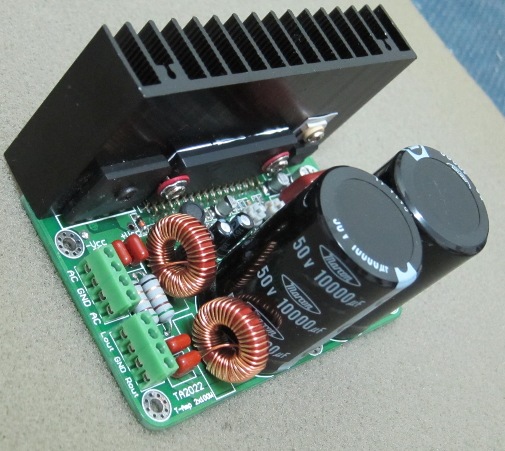

First close up view of the TA2022 amplifier module! I love the toroid coil at the output filter! The output filter design is one of the most important factor for having a good sounding Class T amplifier!

Modding / upgrade potential includes:

  • Output filter capacitors
  • Output filter resistors
  • Power supply electrolytic capacitor
  • Bypass on board bridge rectifier, switch to high quality SMPS

As the TA2022 is a stereo chip, power supply sharing is done for left & right channel. That is not beneficial for the sound - impact on crosstalk, power supply sharing / supply pumping and etc.

What I'll do is to use only 1 module for 1 channel. Everything will be done in mono block fashion. That will improve the sound substantially! 2 is better than 1 in this case. :)

Tripath TA2022 Image 0

Another view of the TA2022 amplifier module. The input capacitor is going to go! Something like Mundorf Silver in Oil would be nice!

So many modding potential! My hands are super itchy!

Speaker Protection Module

My friend that used the TA3020 amplifier I built had encountered burning the amplifier with mistakes on plugging out the source while the source and TA3020 amplifier are still powered.

That burnt the module but luckily his speakers are safe. So, in order not letting that happening to myself, this is a must although it would deteriorate the sound slightly.

For my friend's case, I got him an audio isolation transformer to be plugged in between the source and the TA3020 amplifier. Hope that improves the MTBF for his setup!

Be safe than sorry!

That's all for today's blog!

Ken 6/19/2011
